Reversing camera for Peugeot / Citroën / Toyota (2016–2019)

Reversing Camera for Peugeot / Citroën / Toyota (2016–2019)

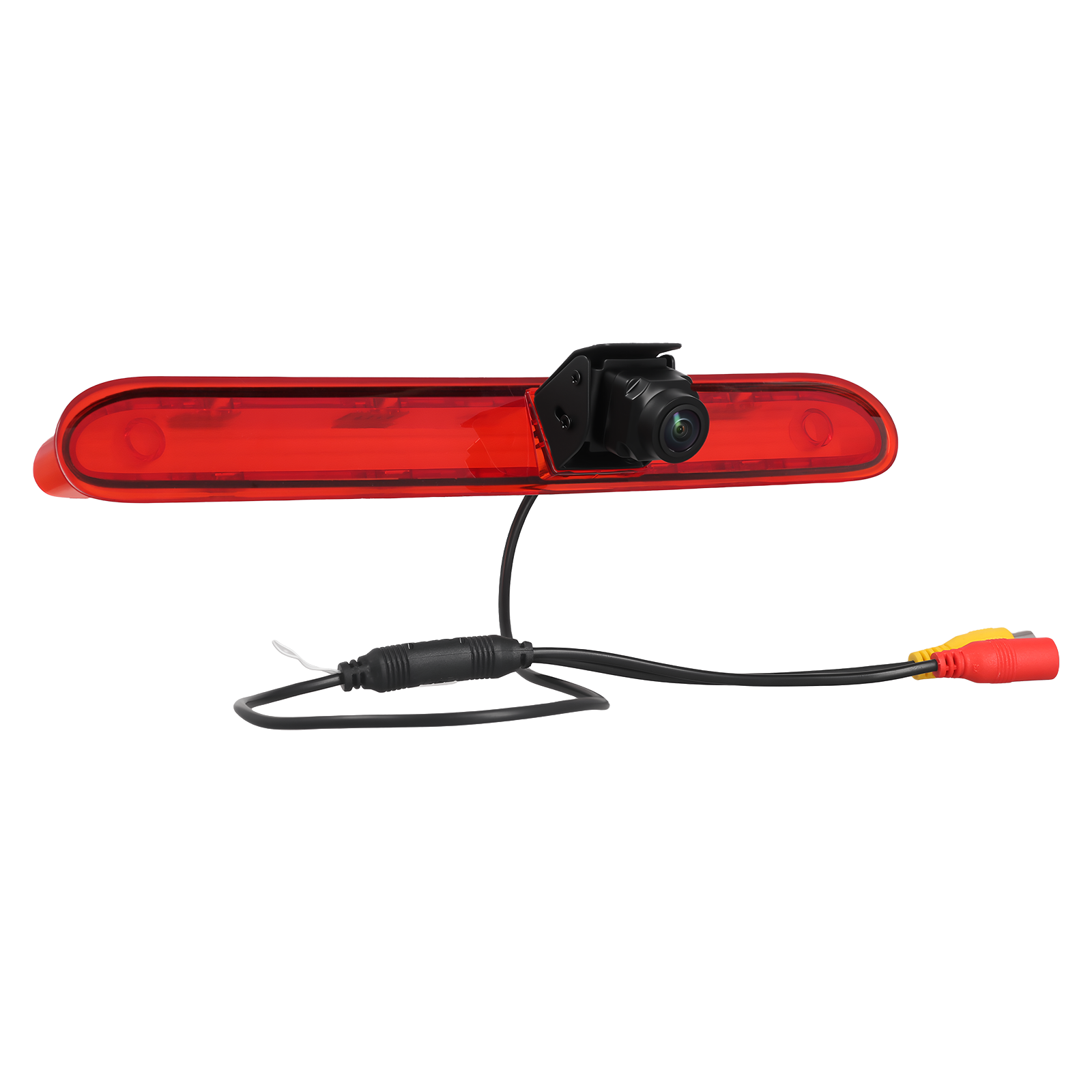

Upgrade your van with a discreet and factory-integrated reversing camera in the brake light.
This HD 720P camera is specifically designed for Peugeot Traveller, Citroën SpaceTourer, and Toyota Proace (2016–2019), providing a clear, stable, and wide field of view when reversing.

Perfect fit – OEM look – maximum safety.

Crystal Clear HD Resolution

720P (1280×720) – 1.0 Megapixel

Delivers a sharp and detailed image with significantly better quality than traditional 480P cameras.
You get a clear overview of obstacles, curbs, and markings – even in low light.

140° Wide Angle

The wide 140° lens provides a panoramic view behind the vehicle and significantly reduces blind spots.

Ideal for:

• Parking in tight spaces

• Reversing with a trailer

• Maneuvering in urban environments

• Commercial and delivery driving

CVBS & AHD 720P – Two Signal Types

The camera supports two video formats and can be adapted to different screens:

1. CVBS PAL mirror image with parking lines

2. AHD 720P PAL mirror image without parking lines

Switch between signal types using the white control wire:

• For CVBS: Connect the white wire

• For AHD: Disconnect the white wire

Makes the camera compatible with both original and aftermarket screens.

IP67 Waterproof

Built for Nordic conditions.

• Rain, snow, moisture, washing, and humidity.

IP67 rating ensures stable operation all year round.

HD IR Night Vision

Built-in infrared technology provides a clear image in the dark.
You get safe reversing both day and night – even in poorly lit areas.

Model-Specific Fit

Fits:

• Peugeot Traveller 2016–2019

• Citroën SpaceTourer 2016–2019

• Toyota Proace 2016–2019

Mounts directly in the upper brake light for a factory-integrated look.

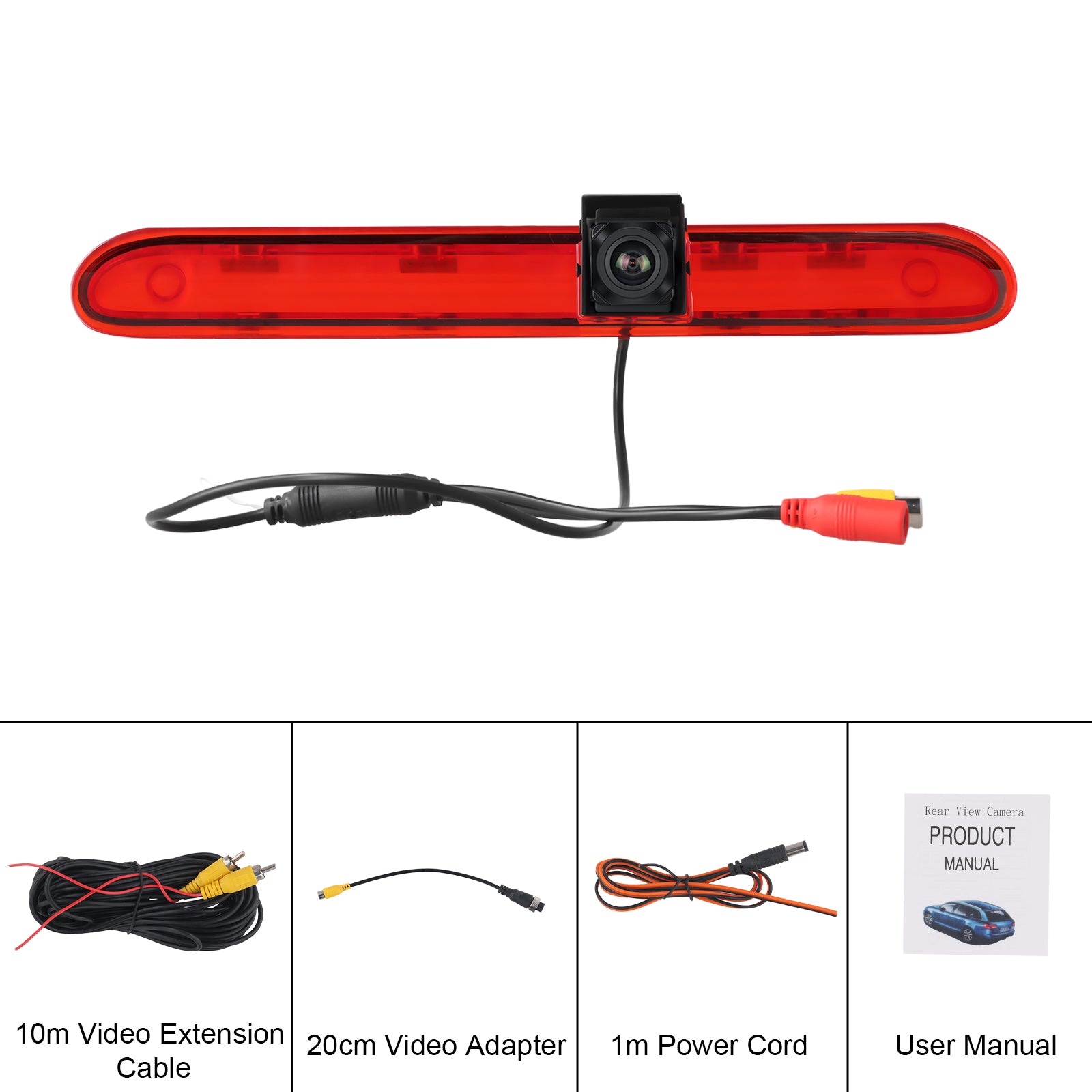

Easy Installation

• 10 meter video extension cable included

• 1 meter power cable

• 20 cm video adapter

• User manual

Can be connected via RCA or 4-pin depending on screen setup.

Power is connected to the reverse light, so the camera is automatically activated when reverse gear is engaged.

Specifications

Resolution: 1280×720 (720P)
Viewing angle: 140°
Signal: CVBS / AHD 720P
Video format: PAL
Waterproof rating: IP67
Placement: Integrated in brake light
Material: Durable ABS housing
